Technical features - cutting, turning, drilling, milling, grinding, production


CNC QUICK TURN NEXUS 200-II MY

Below are the technical capabilities of our tool workshop.
In collaboration with a number of local partners, we are able to carry out even those projects that cut across our technical specification – send as an inquiry and we will be happy to answer you.

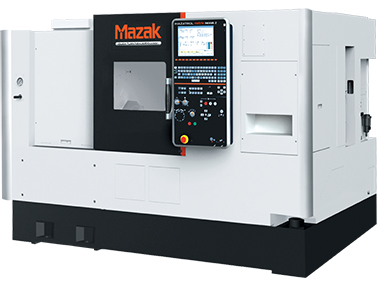

CNC turning center

QUICK TURN NEXUS 200-II MY
  • - Maximum swing 695 mm
  • - Maximum Machining Diameter 380mm
  • - Maximum Bar Work Capacity 65 mm

Vertical machining center

VERTICAL CENTER SMART 530C
  • - Table Right/Left 1300 mm
  • - Table Longitudinal 550 mm

Laser cutting

Laser Mazak New Turbo X48 2500 x 1250 mm

CNC Bending machine

200 tones, up to 4 m

Cutting of materials

  • - Cutting of materials with max Ø 250 mm
  • - Autogenously cutting up to 80 mm of thickness
  • - Universal milling up to dimensions of 300x600 mm

Universal scraping

  • - Maximal processing diameter Ø 500x2000 mm (maximal length 5000 mm pass 68 mm)
  • - Max Ø 1200x2000 mm

Horizontal drill processing – milling machine

  • - 800x800x1000 mm
  • - Opening tolerance
  • - Flat surfaces processing parallelism and perpendicularity 0.02 mm
  • - Welded structures processing and production

Grinding - Sharpening

  • - Grinding - External max Ø 360x2200 mm
  • - Grinding - Internal maximal length 200 to 300 mm depending on the opening diameter
  • - Grinding - straight 250x300x1000 mm - parallelism and perpendicularity 0.02 mm
  • - Sharpening of all cutting tools. 150x150x600 mm

Parts manufacturing

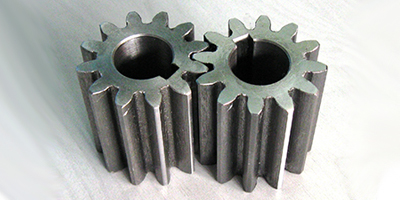

  • - Gear manufacturing (separately)
  • - Transmission chain manufacturing (separately)
  • - Ball screw manufacturing
  • - Pin canals manufacturing on the axles to 1000 mm
  • - Carving of pin canals of max 190 mm. Max diameter of squeezing Ø 400 mm

Sets and subsets manufacturing

  • - Sets manufacturing
  • - Subsets manufacturing
  • - Manufacturing and processing of welded constructions and sets
  •     - MIG – MAG
  •     - Arc welding
  •     - Gas welding
